How it works, End Caps

Screw Connection: Use this method for permanent fixtures that will require little or no modification

  1. Insert end caps
  2. Insert shouldered dowels into Hollow B
  3. Place Hollow A into position over shouldered dowels in Hollow B
  4. Insert double nuts into Hollow A and double chases into Hollow B
  5. Insert screws through Hollow B

Combi Retention Connection: Useful for fixtures that require quick and easy removal of certain segments

  1. Insert end caps
  2. Insert double nuts into Hollow B
  3. Screw combi retention bolts into Hollow B
  4. Place Hollow A into position over combi retention bolts in Hollow B
  5. Insert locks in Hollow A

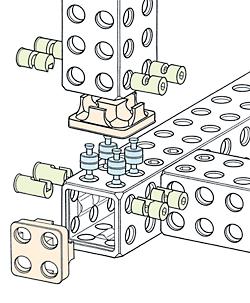

Double Retention Connection: Use this method when rapid part removal or modification is required

  1. Insert end caps
  2. Insert double retention bolts into Hollow B
  3. Place Hollow A into position over double retention bolts in Hollow B
  4. Insert locks in Hollows A and B
