AMT-10026

American Modular Tooling Fixturing Kit features:
  • 7075-T6 aluminum components
  • Hard coat anodized
  • 0.02mm (0.0008") accuracy for flatness, square, parallel and center to center of hole location
  • Components can be used across system sizes
  • AMT kits are expandable and compatible with Hollows and other AMT components.

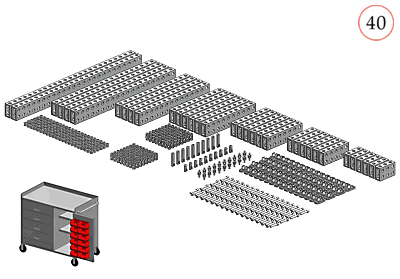

AMT-10026, Kit #16, 528 pieces, Grid 40

Kit 10026 is excellent for making frames or, combined with AMT "nub" blocks, makes a great checking or holding fixture. Combine with AMT kit 10024 and have the ultimate kit for sheet metal or large parts.

Contents
Qty
Description
AMT-17202
132
Dowel with shoulder, 20 mm
AMT-17212
20
Combi retention bolt, 20 x 30 mm, M10
AMT-17220
64
Nut, single, M10
AMT-17230
10
Lock for retention bolt, 40 mm
AMT-17232
10
Lock for retention bolt, 80 mm
AMT-17241
64
Chase, single, M10
AMT-17248
64
End cap, 40 x 80 mm
AMT-17264
132
Screw, M10 x 50 mm, stainless steel
AMT-19507
6
Bar, 40 x 80 x 120 mm
AMT-19509
6
Bar, 40 x 80 x 200 mm
AMT-19511
4
Bar, 40 x 80 x 280 mm
AMT-19514
6
Bar, 40 x 80 x 400 mm
AMT-19518
4
Bar, 40 x 80 x 560 mm
AMT-19524
4
Bar, 40 x 80 x 800 mm
AMT-19529
2
Bar, 40 x 80 x 1000 mm
Note: All kits include needed tools
AMT-10026
$20,308.09
